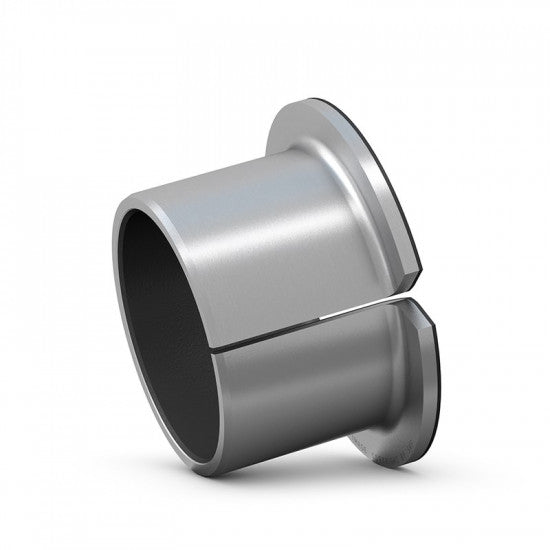

SKF PCMF 303416 E Flanged Sliding Bearing, Steel-PTFE/Pb
€5,06
Unit price
/
Unavailable
Description
Description
PCMF 303416 E is a sliding bearing made from rolled steel sheet with a PTFE working layer. The bearings have high load capacity, very low friction, high sliding speed, and operate in a wide temperature range from -200 °C to +250 °C. They are suitable for operating conditions with high loads requiring maintenance-free operation. The sliding layer of the bearing based on PTFE partially transfers to the opposite surface after a short run-in, creating a physically bound sliding film. However, regular lubrication improves their performance and extends their lifespan.
Parameters
Parameters
Diameter D (mm):
30
Diameter D (mm):
34
Diameter d1 (mm):
42
Width B (mm):
16
Width B1 (mm):
2
Type:
flanged sliding bushing with PTFE composite
Designation:
PCMF 303416 E
