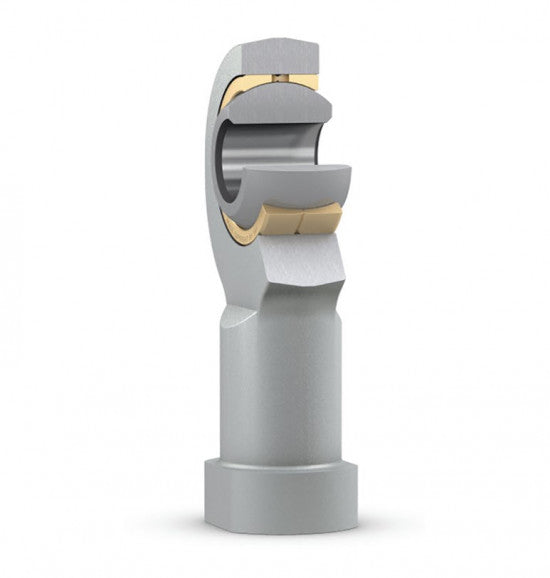

SKF SIKAC 14 M kĺbová hlavica
€34,12
Unit price
/
Unavailable
Description
Description
SIKAC 14 M SKF Kĺbová hlavica
Parameters
Parameters
Length l3 (mm) min.:
21
Length l4 (mm):
76
Length l5 (mm):
8
Length l7 (mm):
18
Material:
steel-steel
Radius r (mm):
0,3
Diameter D (mm):
14
Diameter D (mm):
37
Diameter d2 (mm):
37
Diameter d3 (mm):
20
Diameter d4 (mm):
27
Diameter dk (mm):
25,4
Width B (mm):
19
Width C1 (mm):
14,5
Type:
articulated head
Angle (°):
16
Height h1 (mm):
57
Thread G:
M 14
Designation:
SIKAC 14 M
