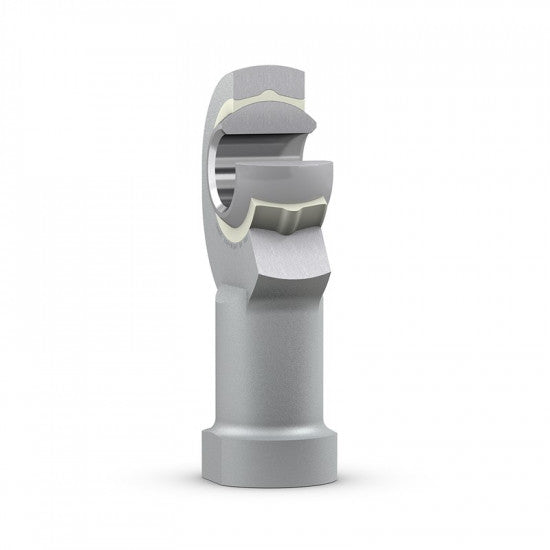

SKF SILKB 16 F kĺbová hlavica
€51,25
Unit price
/
Unavailable
Description
Description
SILKB 16 F SKF Kĺbová hlavica
Parameters
Parameters
Length l3 (mm) min.:
24
Length l4 (mm):
87
Length l5 (mm):
8
Length l7 (mm):
21
Material:
steel- PTFE FRP
Radius r (mm):
0,3
Diameter D (mm):
16
Diameter D (mm):
43
Diameter d2 (mm):
43
Diameter d3 (mm):
22
Diameter d4 (mm):
29
Diameter dk (mm):
28,5
Width B (mm):
21
Width C1 (mm):
15,5
Maximum temperature °C:
+ 75
Minimum temperature °C:
- 40
Type:
articulated head
Angle (°):
15
Height h1 (mm):
64
Thread G:
M 16 left
Designation:
SILKB 16 F
